Raz300 specifications for RazTech RazLight - outdoor projector and image projector / holiday projector

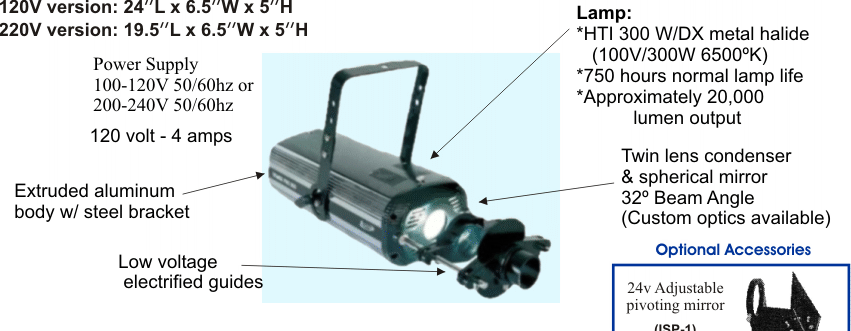

The RAZ300 is a compact, high output image projector with excellent optics. The projector is fitted with a 300 watt HTI 300 arc lamp with a light output of 20,000 lumens. This fixture has two low voltage electrified guides (24 V) with short-circuit protection able to accept different lens units and accessories offering different effects and various combinations. The images can be moving or stationary. By using several accessories together, more special effects can be created.

The electrified guides make it very simple to mount effects accessories. The low voltage used for the effects eliminates the risk of electrical shock and forced cooling reduces operating & surface temperature making the projector safe to use. The elegant style of the RAZ300 fits in anywhere and runs quietly with low operating costs.

* HTI 300 W/DEL (85V/300W 5700ºK)
3000 hours
*Rotating gobo: dichroic/photographic,
diameter 51.8mm

*Rotating gobo: metal, diameter 62mm

*Stationary gobo: metal, diameter 66mm

Color temperature: 6500K
Power consumption: 450 watts maximum
Power outlet: Chassis male EIC socket
Fuse(fast acting): F6A 250V 5x20mm
Cooling: Forced air with axial fan
