Adjusting Focus: Move lens assembly in or out on rails then lock in place with collars.

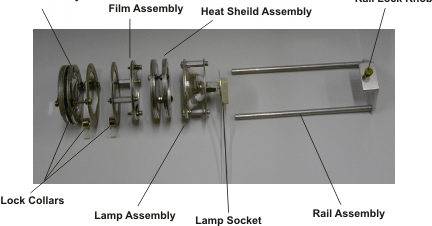

Lamp Changing: Loosen all collars and remove all assemblies. Unplug socket and loosen ring screws, remove and replace lamp.

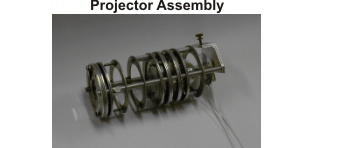

Mounting Projector Assembly: Remove all assemblies from rail assembly. Screw the rail bracket to the light can bracket with thumb screw.
Lamp Type: The Lamp assembly is installed with a 50watt narrow beam halogen lamp. Smaller Light cans may need a 35 or 20watt lamp to prevent the thermo-switch from turning the projector off and on.
A dimmer can be placed in the circuit to set the optimal light output and reduce thermo-switching.

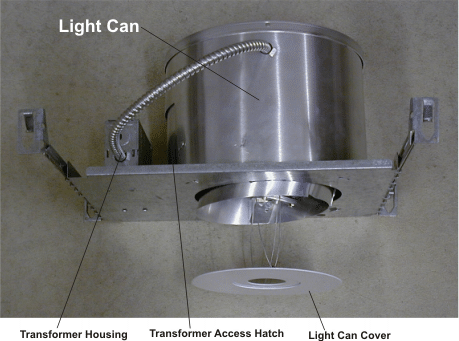

Installing Transformer: The transformer can be replaced through the access hatch in the light can.
2.) Crimp black transformer lead to hot(black) wire of cord.
3.) Crimp white transformer lead to neutral(white) wire of cord.
4.) Pull heat shrink tubing over crimps and heat tubing carefully.
